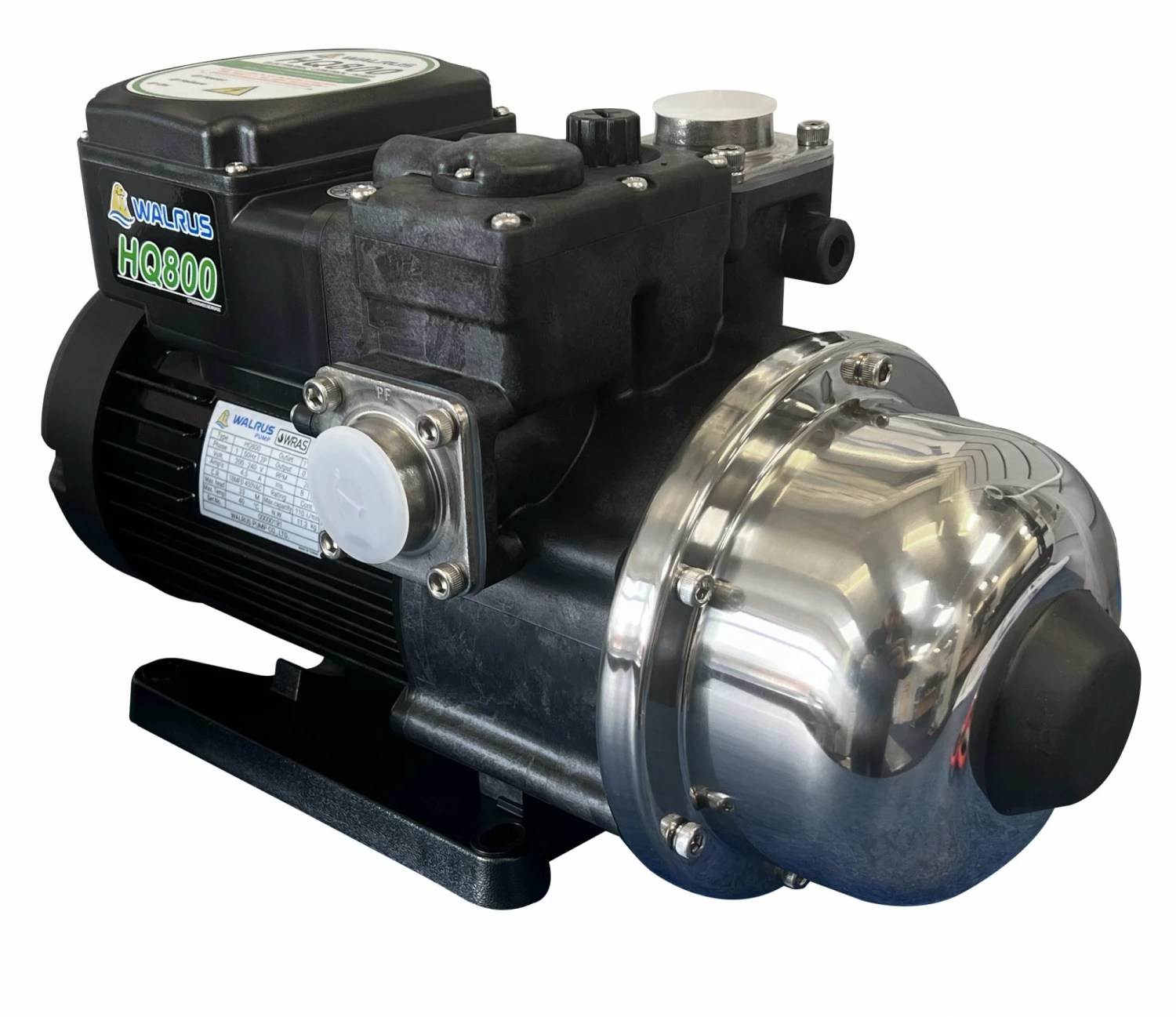

Walrus HQ800 Booster Pump 100l/min @ 3bar

HQ800

The HQ Series pumps as designed for water supply and boosting water pressure in residential, commercial, and light industrial applications where low or inadequate water pressure exists. The HQ Series is suitable for boosting pressure from either underground or surface water supplies.

He HQ Series is an all-in-one unit which consists of a pump, motor, pressure tank, and electronic controller giving you a plug-and-play system. The built-in electronic controller provides constant pressure, which ensures the pump starts automatically when water is consumed and continues to operate until water demand has ceased.



Operating Conditions:-

• Ambient temperature: Max. +40 °C
• Liquid temperature: +4 °C ~ +40 °C
• System Pressure : Max. 8.5 kg/cm²
• Relative humidity: Max. 85% (RH)
• Under normal operation, it is not necessary to adjust the pressure unless the cut in pressure is higher than the pre-set activation point (refer to specification).



Product Features:-

• The HQ is a complete, all-in-one unit, consisting of pump, motor, pressure tank, and electronic controller. The built-in electronic controller provides constant pressure, which ensures that the pump starts automatically when water is consumed and operates continuously until water is not required.
• Compact design and quiet operation make the HQ series suitable for many applications. 3. The HQ is constructed from the top quality corrosion resistant materials.
• The HQ is constructed from the top-quality corrosion resistant materials.
• The pump has built in dry-run shut off with automatic reset function.
• The motor has built-in thermal overload to protect against high operating temperatures and over current.
• The HQ has an anti-cycling feature, which prevents the pump from continuous starting and stopping when you have a dripping tap or minor leak in the system.
• The pumps will lift water up to 7.6 m. With foot valve and pump suction piping filled with water.



Delivery

All our Booster pumps are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

• Product Code: DPT
• Delivery: Fast Delivery
• Potable: WRAS Approved MDPE – Black only
• Twin or Single: Single
