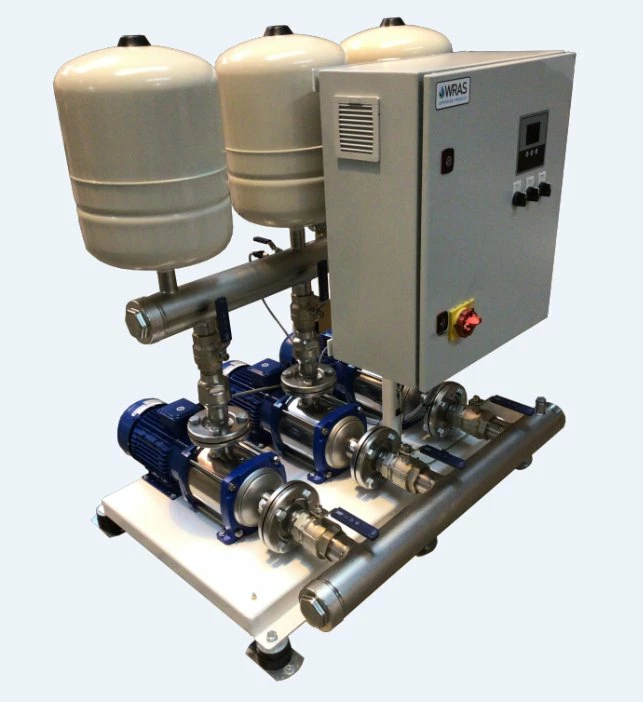

Triple Pump Booster Set, MH 48 – MAB

MAB Cold Water Booster sets

Tank Direct Ltd offer variable speed booster sets one to three pumps and up to 5.5KW with our MAB variable speed control panel.

Designed for commercial applications, i.e. hotels, schools, colleges, office blocks, nursing homes & hospitals etc.

All MAB booster sets have MODBUS front of house protocol software as standard & BACNET is also an optional extra if required with existing operating systems.

All our sets are built to a compact design and quiet running. Suction & discharge manifolds are in 304 stainless steel. All MAB sets can be supplied with an optional WRAS approved break tank sized to suit demand. The panels have password protection, soft start safety function, anti-seize facility & manual mode for fixed speed emergency supply.
The MAB panel can also be retro fitted to any existing fixed speed booster set, either freestanding or wall mounted.

Features:

• 304 Stainless steel WRAS approved pumps.
• BMS Volt Free Contacts
• Automatic Cascade mode
• Dry run protection
• 304/316 Stainless steel manifolds and fittings
• Brass nickel plated WRAS approved ball valves
• Union fittings on suction and discharge for easy disassemble
• PWB 24 litres WRAS approved pressure vessel
• Glycerine filled pressure gauge
• Common powder coated baseplate
• All wired, tested and programmed prior dispatch



Supply Voltage	230v – 1ph – 50hz +/- 10%
Motor P2 (kW)	3 x 1.5
Max Flow (L/Min)	690
Max Head (Meters)	48
Full Load Current (Amps)	17.7



Option: Stainless steel inlet & outlet flexible connector, (recommended over rigid pipe when installing tank away from booster set)
Tanks Direct also supply variable domestic & commercial single to six pumps, please contact us on 01643 – 703358.

• Product Code: FW
• Delivery: Free Delivery
• Twin or Single: Triple
• WRAS: Yes
