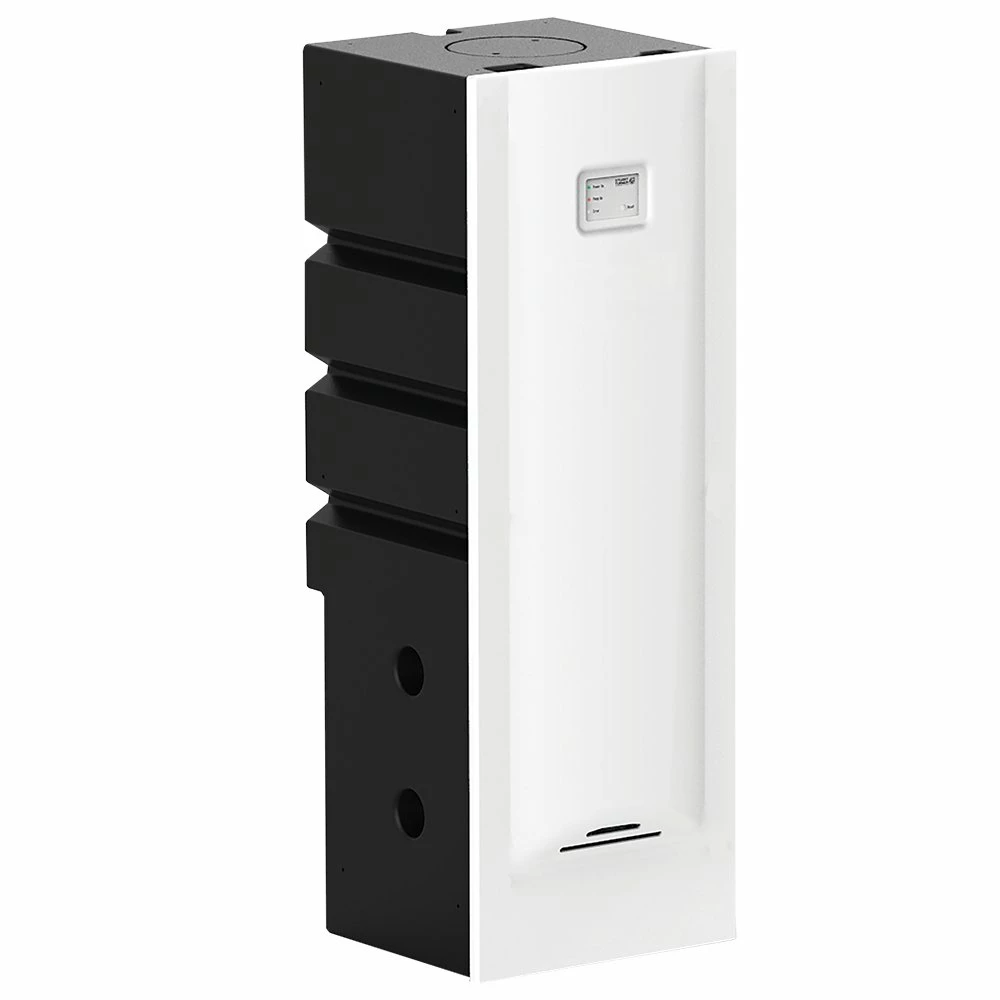

Stuart Turner Mainsboost IBoost – F200-100-45

Mainsboost Flomate iBoost Home Booster set- F200-100-45

Mainsboost iBoost provides a boosted cold water supply of up to 100 litres per minute and up to 4.5 bar pressure, with a typical performance of 60 litres per minute at 3.0 bar pressure to inadequate flow rates and water pressure, offering a better solution..

Ideally suited to high occupancy properties with multiple bathrooms and water using appliances.

Combining a 200 litre cold water storage tank and a high performance, multistage pump to over come restricted water flow and insufficient pressure.

Simple to operate, the iBoost F200 sits neatly within any standard 600mm kitchen cupboard or alongside other household white appliances. Available with either fixed or variable speed pump controls and with the optional iBoost +200 extension tank, increasing the storage tank form 200 litres to 400 litres. Installation is simple for the iboost +200 extension tank; the kit supplied will allow you to connect the tank to th main iBoost unit.



Features:

• 3 year warranty
• Compact, space saving design, fits within a 600mm cupboard
• Boosts cold water mains supply to 4.5 bar
• 200 litre water storage capacity
• Quiet operation
• WRAS Approved Product
• Fixed speed pump control system
• High flow, low noise equilibrium fill valve
• Control panel and status indicators
• Dry run protection



Mainsboost iBoost F200-100-45 Specifications

Manufacturer	Stuart Turner
Manufacturer’s Warranty	3 years*
Pump Type	Multistage Centrifugal
Water Tank Nominal Size	220 Litres
Water Tank Usable Capacity	200 Litres
Dimensions (width x depth x height)	536 x 529 x 1504 mm
Weight (including fittings)	55 kg
Power Cable Length	3 m (pre-wired)

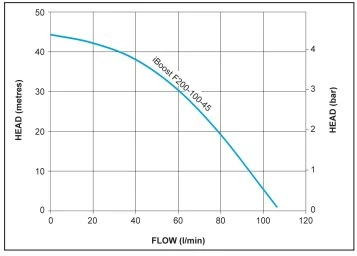

Max. Head – Closed Valve (metres)	45 m
Max. Flow (Litres per minute)	100 L/min
Max. ambient Air Temp. (continuous)	30 °C
Power Supply	230 V a.c. / 1 / 50 Hz
Motor Type	Induction motor (auto-reset thermal trip)
Duty Rating	Continuous (S1) @ 5 l/min and above





Delivery

All our Booster pumps are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require any specific requirements regarding delivery, please call us before order is placed, where we will try and accommodate this facility for you.



• Product Code: STUT
• Brand: Stuart Turner
• Twin or Single: Single
• WRAS: Yes
