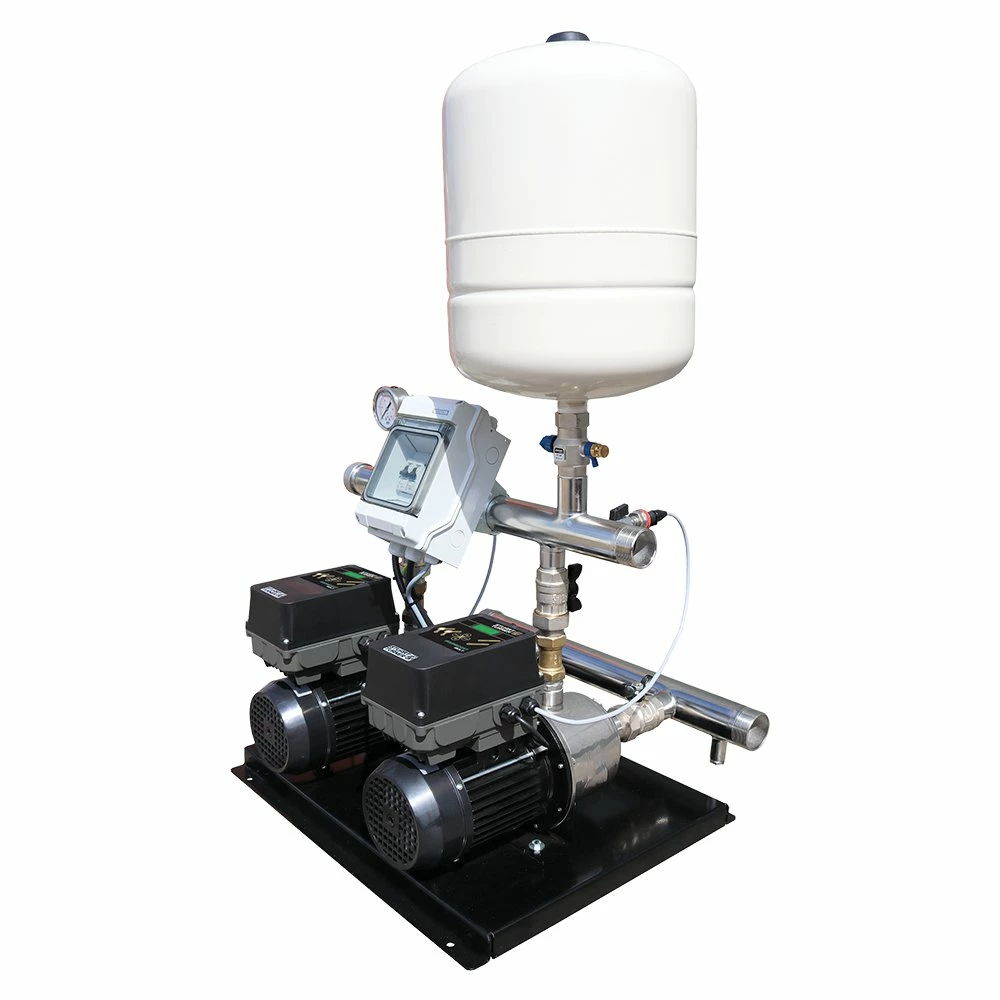

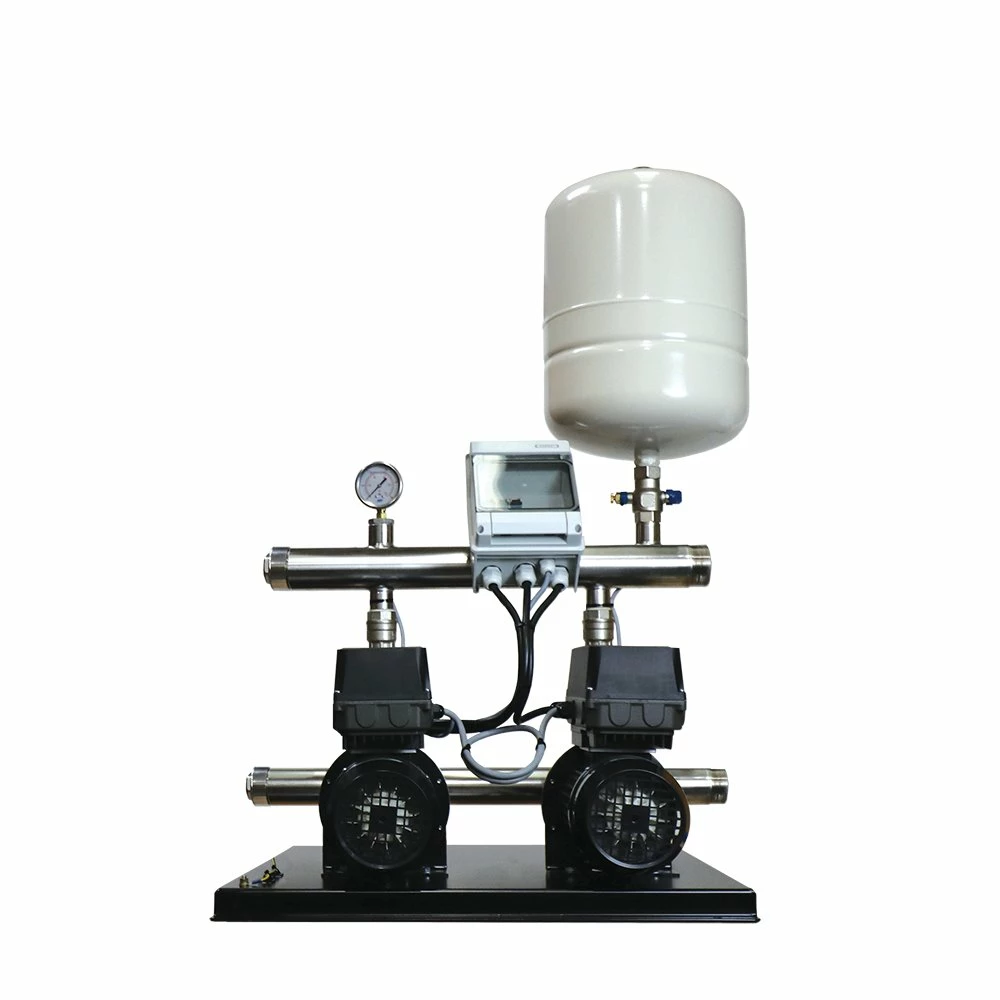

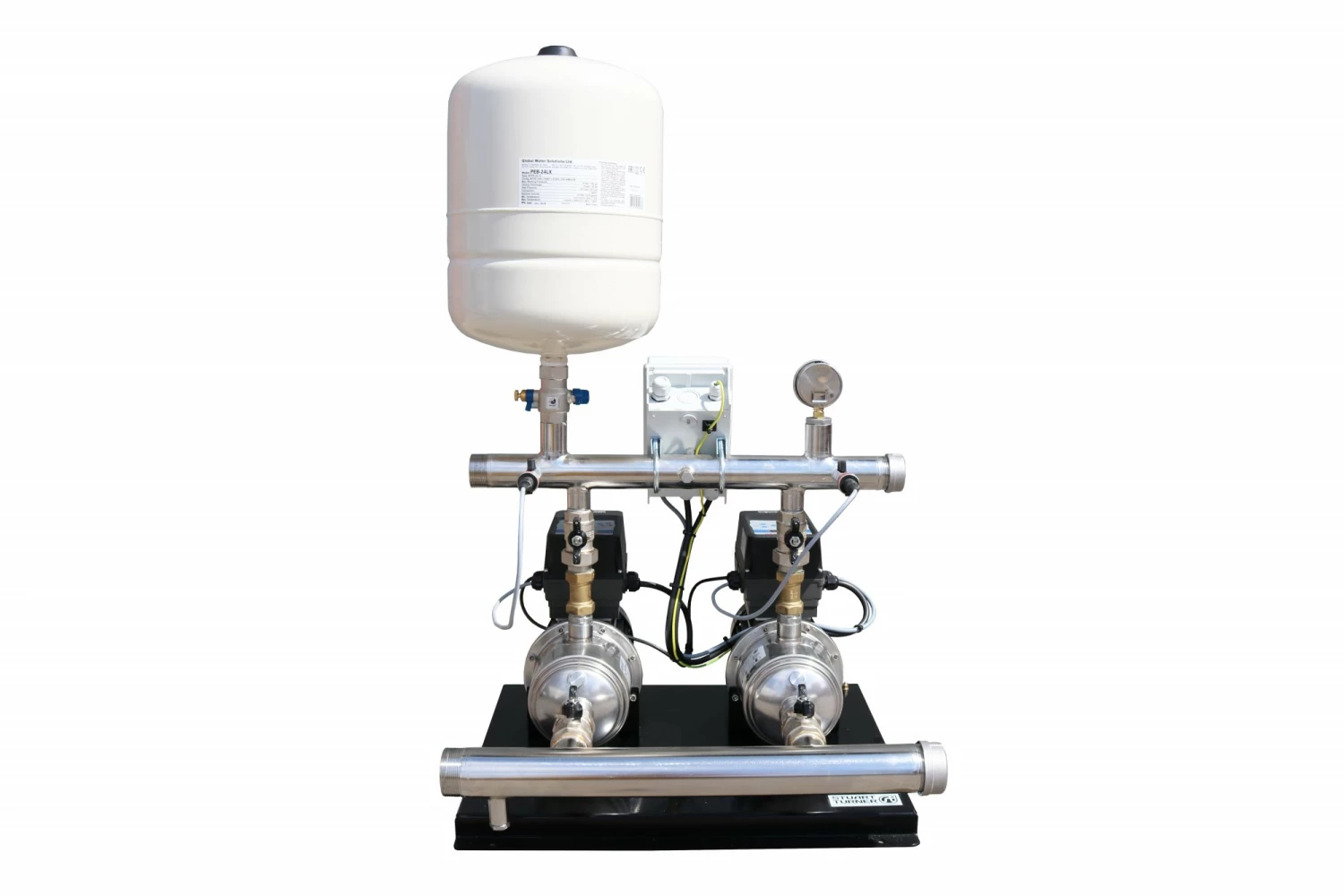

Stuart Turner Aquaboost iBolt Horizontal Twin Booster Pump 0504 2H-CMT/24 160 L/MIN @ 3.4 BAR
Aquaboost iBolt range of Twin pump 05 booster sets are capable of delivering flow rates up to 8.0m³/ hour and can produce head pressures of up to 9.2 bar. Not only does the Aquaboost iBolt 03 range feature two horizontal multistage pumps, it is also controlled by an air-cooled variable speed frequency invertors which are mounted directly onto the pump motor.
Ideal for cold water pressure and flow boosting in a range of domestic, commercial and industrail applications.
Key Features for the 05 range
- Flow rates up to 16.0 m3 /h
- Head pressure up to 9.2 bar
- Dry run protection
- 304 stainless steel pumps
- 304/316 stainless steel manifold assembly
- Nickel plated WRAS approved ball valves
- Union fittings on suction and discharge
- WRAS approved 24 litre pressure vessel
- Air cooled inverters
- Glycerine filled pressure gauge
- Powder coated base plate
- BMS volt free contacts
| Manufacturer | Stuart Turner |
| Manufacturer’s Warranty | 2 Years |
| Pump Type | Centrifugal Multistage |
| Pump Control | Duty / Standby or Duty / Assist |
| Inlet | 2″ |
| Outlet | 2″ |

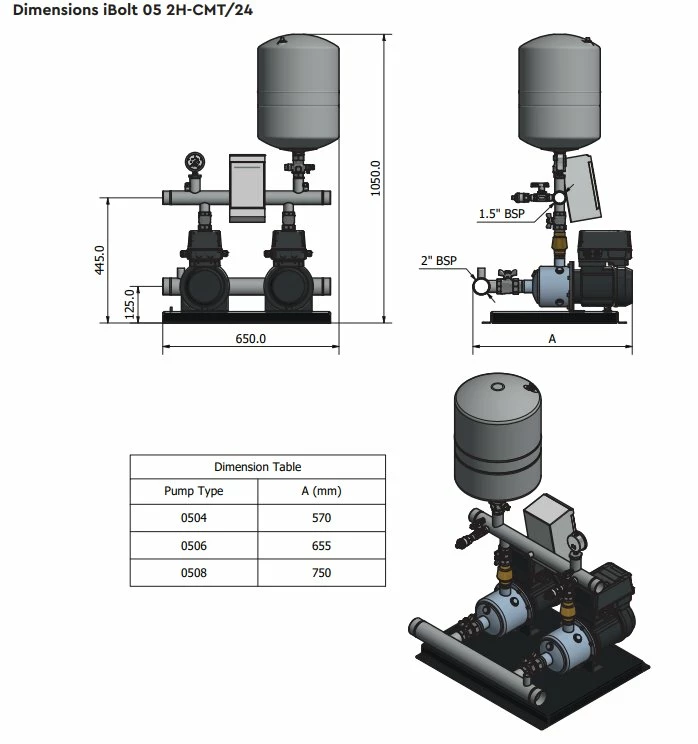

| Dimensions (l x w x h) | 570 x 650 x 1050 mm |
| Weight | 50 Kg |
| Typical Noise | < 70 dB (A) |
| Nominal Head | 3.4 bar |
| Max. Head – Closed Valve (metres) | 4.6 bar |
| Nominal Flow Rate | 10.0 m³/ h (5 m³/ h per pump) |
| Max. Flow (Litres per hour) | 16.0m³/ h (8.0 m³/ h per pump) |
| Pressure Vessel | 24 Litres |
| Max. ambient Air Temp | 40 °C |
| Power Supply | 230 V a.c / 1 / 50 Hz |
| Current Load | 7.4 Amps |
| Motor Type | Induction (current overload sensor) |
| Duty Rating | Continuous |
Delivery
All our Booster pumps are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.
If you require any specific requirements regarding delivery, please call us before order is placed, where we will try and accommodate this facility for you.
Tanks Direct also supply variable domestic & commercial twin and triple pumps, please contact us on 01643 703358.
Product Details
- Product Code: ST
- Delivery: Free Delivery
- Twin or Single: Twin
- WRAS: WRAS Approved Parts
