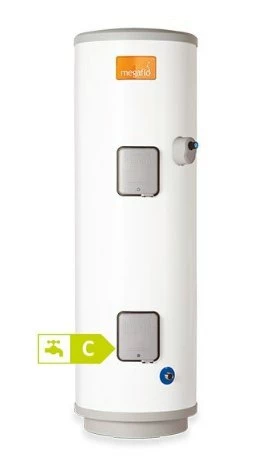

Megaflo Eco Slimline 100 Litre Direct Unvented Hot Water Cylinder

Megaflo Eco 100 Litre Slimline Direct Unvented Hot Water Cylinder

Megaflo Eco Slimline is a compact version of the Megaflo Eco, designed for homes where space for a hot water storage cylinder is limited and where standard size cylinders are unlikely to fit. By being taller and slimmer, the Megaflo Eco Slimline stores the same amount of hot water as an equivalent capacity cylinder and still provides exceptionally high levels of comfort and hot water performance.

Negating the need for an expansion vessel, the unit fits in the tightest of situations, allowing for fast, tidy and compact installations that can be fitted almost anywhere.

Package includes:

• Cylinder incorporating 1 x factory fitted immersion heaters and thermal controls
• factory fitted temperature and pressure relief valve `
• Instructions (Inc benchmark commissioning checklist & service record)
• Cold water control pack `
• Combination valve (Inc pressure reducing valve, pressure relief valve, check valve and isolating valve)
• Tundish
•  T&P relief valve insulation set
• Drain valve
• Titanium electric heating elements

Megaflo Eco Direct Unvented Hot Water Cylinder Features

• Internal floating baffle expansion system
• Saves space and installation time
• Delivers 72 Litres per minuter at 3 bar
• 60 mm of CFC / HCFC-free injected foam for the best possible heat retention and energy efficiency
• High performance ‘coil-in-coil’ heat exchanger in indirect models for exceptionally fast recovery times
• Unique ‘L’ shaped immersion heater maximises the volume of hot water available when heated electrically
• Titanium electric heating elements on direct models for extra long-life



Megaflo 100 Litres slimline Direct Specifications

Nominal Capacity (Litres)	100
Weight – Empty (kg)	27
Weight – Full (kg)	130
Height (mm)	1194
Diameter – Cylinder only (mm)	491
Diameter – Cylinder inc. T&P valve (mm)	516
Internal Expansion with floating baffle	YES
Insulation Thickness (mm)	50
Immersion Heater Rating (kW)	1 x 3
Standing Heating Loss (kWh/24h)	1.13
Standing Heat Loss (kWh/year)	412
Max Flow at 3 Bar (l/min)	70
max Flow at 1 Bar (l/min)	40
T&P Relief Valve (mm)	729



Delivery

All our Cylinders are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.



• Product Code: PFW
• Customer Offloading: Customer Offloading
• Delivery: Free Delivery
