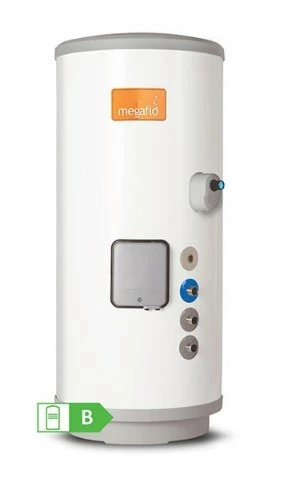

Megaflo Eco 150 Litre Slimline Indirect Unvented Hot Water Cylinder

Megaflo 150 Litre Slimline Eco Indirect Unvented Hot Water Cylinder

Megaflo Eco Slimline is a compact version of the Megaflo Eco, designed for homes where space for a hot water storage cylinder is limited and where standard size cylinders are unlikely to fit. By being taller and slimmer, the Megaflo Eco Slimline stores the same amount of hot water as an equivalent capacity cylinder and still provides exceptionally high levels of comfort and hot water performance.

Negating the need for an expansion vessel, the unit fits in the tightest of situations, allowing for fast, tidy and compact installations that can be fitted almost anywhere.

Package includes:

• Cylinder incorporating factory fitted immersion heater and thermal controls
• factory fitted temperature and pressure relief valve `
• Instructions (Inc benchmark commissioning checklist & service record)
• Cold water control pack `
• Combination valve (Inc pressure reducing valve, pressure relief valve, check valve and isolating valve)
• Tundish
• 2 port zone valves
• Wiring centre
• T&P relief valve insulation set
• Drain valve

Megaflo Eco Slimline Indirect Unvented Hot Water Cylinder Specification

• Internal floating baffle expansion system
• 60 mm of CFC / HCFC-free injected foam for the best possible heat retention and energy efficiency
• High performance ‘coil-in-coil’ heat exchanger in indirect models for exceptionally fast recovery times
• Unique ‘L’ shaped immersion heater maximises the volume of hot water available when heated electrically
• Titanium electric heating elements on direct models for extra long-life



Megaflo Eco 150 Litre Slimline Indirect Specifications

Capacity (Litres)	150
Height (mm)	1662
Diameter – cylinder only (mm)	491
Diameter – cylinder Inc. T&P valve (mm)	516
Weight – Empty (kg)	40
Weight – Full (kg)	186
Internal Expansion with Floating Baffle	YES
Insulation Thickness (mm)	50
Immersion Heater rating (kW)	1 x 3
Standing Heat Loss (kWh/24h)	1.46
Standing heat Loss (kWh/year)	533
Max Flow at 3 Bar (l/min)	70
Max Flow at 1 bar (l/min)	40
T&P relief valve (mm)	1123



Delivery

All our Cylinders are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.



• Product Code: PFW
• Customer Offloading: Customer Offloading
• Delivery: Free Delivery
