KSB Ama Drainer 301 SE/NE Submersible Drainage Pump

KSB Ama Drainer 301 SE/NE Submersible Drainage Pump

The Ama Drainer 301 SE/NE is a 1¼” submersible treated effluent water pump which is suitable to clear effluent containing solids of up to 10 mm.

Fully floodable, vertical, close-coupled single-stage submersible motor pumps, IP 68, with or without level control, for a maximum immersion depth of 2 m.

Features

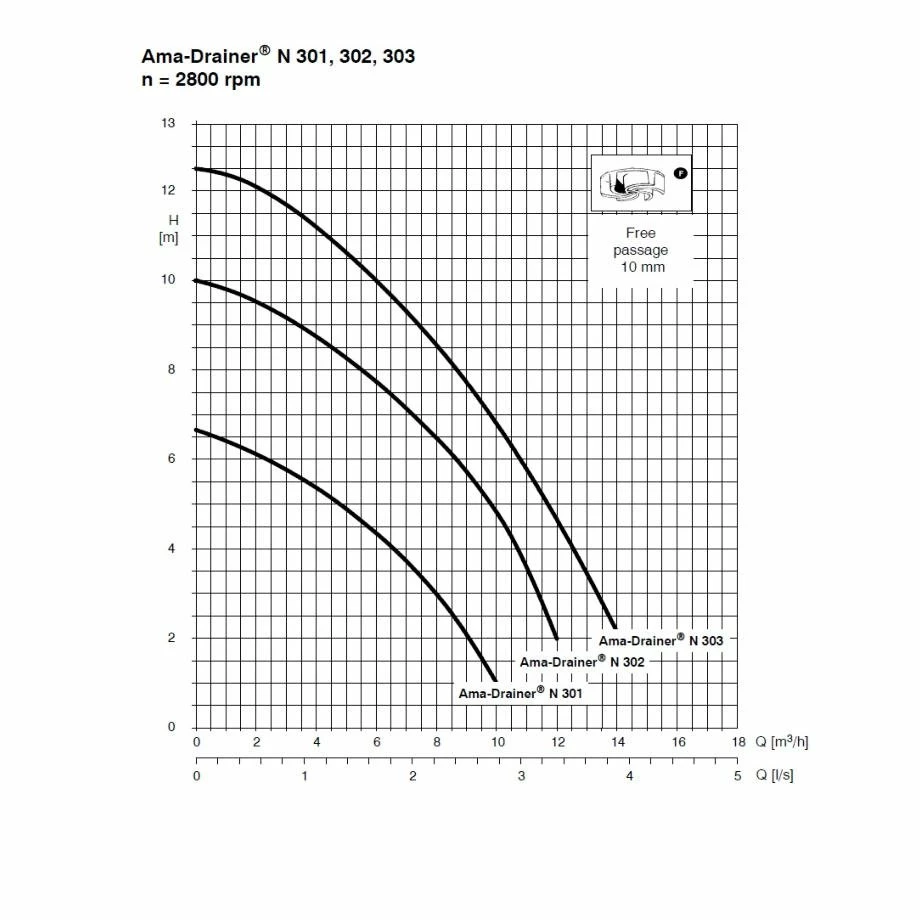

Technical data

• Flow rate Up to (2.75 l/s)
• Head Up to 6 m
• Temperature Up to 50 C
• Free passage Up to 10 mm
• Supplied with a 2 pin European plug which can be removed and will not affect the warranty
• 10m Cable provided

Applications

• Drainage of pits, shafts, yards and cellars subject to a flooding risk
• Extraction of water from rivers and reservoirs
• Drainage of underground passages
• Lowering the surface water level
• Magnetic switch with adjustable, variable level control and anti-over winding device
• Straightforward adaptation to external control system with locking disc.
• Easy to replace cable with plug-type connector
• No drainage of the discharge pipe with the Integrated swing check valve
• Vertical discharge nozzle allows installation in narrow sumps
• Protected against overload which grants Integrated motor protection
• High operating reliability with the triple shaft seal lubricated by the barrier fluid makes for high motor reliability. Lubrication of the seal faces in the event of dry running.
• Long service life with the low-weight design and corrosion-proof thanks to high-quality plastic casing. Noise-absorbing, abrasion-proof and impact-resistant.
• Economic operation optimised the hydraulic systems and motors for large pump output at high efficiency
• Frame-cooled enclosed motor. Permits operation even when motor is not submerged and is protected against overheating, however not advised as a conscious method of operation



Delivery

All our Submersible pumps are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.
