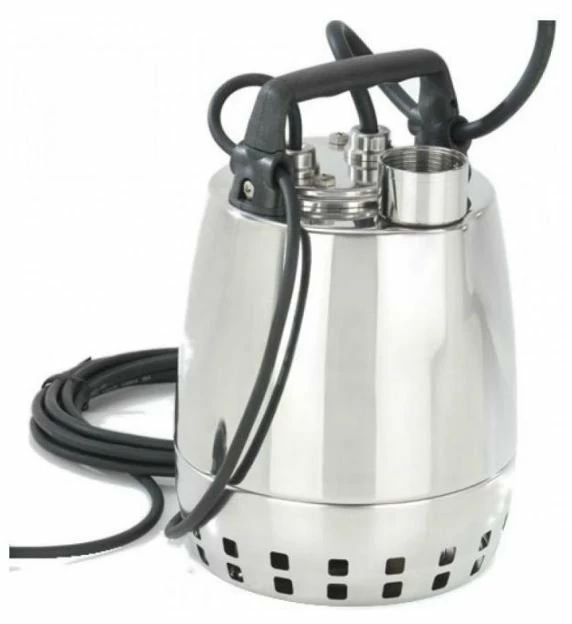

Calpeda GXR 11 Submersible Manual Pump With 10m Cable

Calpeda GXR 11 Submersible Manual Pump with 10m Cable

GXR: Single open impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port. Motor cooled by the pumped water passing between the motor jacket and the external jacket. Double shaft seal with oil chamber. Minimum dimension and high levels of performance, for use in many different applications, head up to 11 m and flow rates up to 200 Litres/min.

Applications

• For clean water containing solids up to 10 mm grain size.
• For draining rooms or or emptying tanks.
• Extraction of water from ponds, streams or pits and for rainwater collection.
• For irrigation purposes.
• For outdoor use a power supply cable of not less than 10 m should be used in accordance with: EN 60 335-2-41.

Construction

• Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port and with open impeller.
• Motor cooled by the pumped water passing between the motor jacket and the external jacket.
• Double shaft seal with oil chamber.
• Minimum dimension and high levels of performance, for use in many different applications, head up to 11 m and flow rates up to 200 Litres/min.

Features

• G1 1/4″ vertical, upward delivery port for installation in small pits

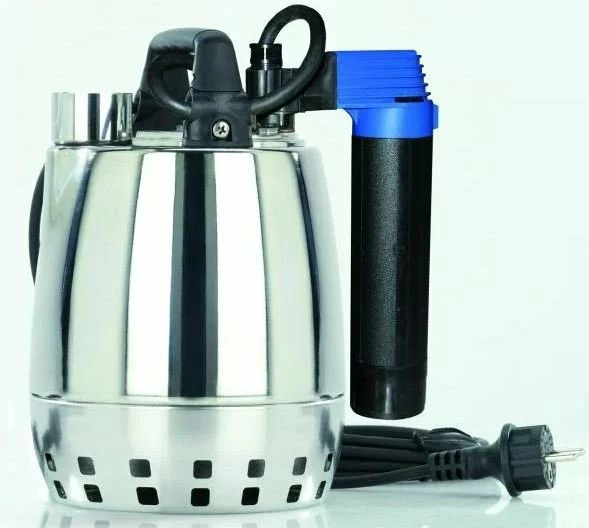

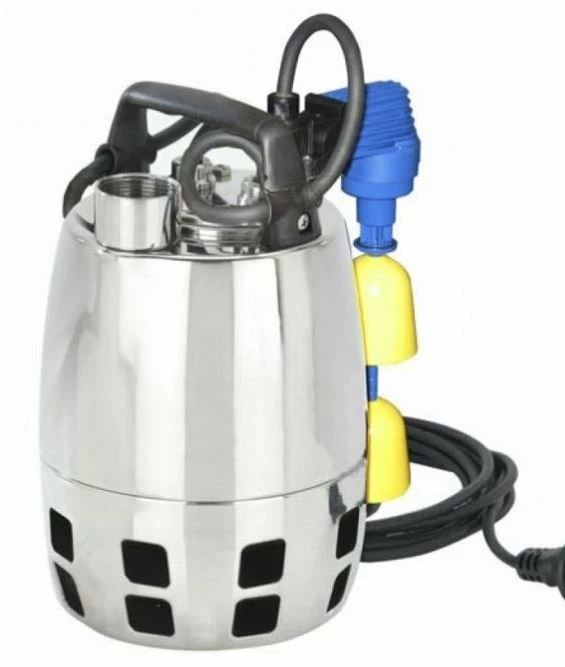

• Easy adjustment of the float switch to allow adjustment of start/ stop pump levels
• Minimum dimension and high levels of performance, for use in many different applications, head up to 12.7m and flow rates up to 220 liters/min
• Suction strainer with a double row of holes, for extra safety against clogging
• Handle in polypropylene
• Easy inspection of the capacitor area
• Shaft in chrome-nickel stainless steel
• Motor cooled by the pumped water passing between the motor jacket and the external jacket
• Ceramic stainless steel shaft sleeve
• Oil chamber
• Impeller in chrome-nickel stainless steel
• Double shaft seal with oil chamber separates the motor from the water and provides further protection against accidental operation when dry

Operating conditions

• Liquid temperature up to 50° C.
• Maximum immersion depth: 5 m.
• Minimum water level with float: GXR = 70 mm
• Minimum water level manual operation: GXR = 15 mm
• Continuous duty.

Motor

• G1 1/4″ vertical, upward delivery port for installation in small pits
• Rated motor power output – 0.37kW
• 2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
• Incorporated capacitor.
• Insulation class F.
• Protection IP X8 (for continuous immersion) Double impregnation humidity-proof dry winding.
• Constructed in accordance with: EN 60034-1; EN 60335-1, EN 60335-2-41.
• Options:single phase 240V or three phase 400V
