Aquamaxx 1200 Litre Cold Water Twin Booster Pump Set

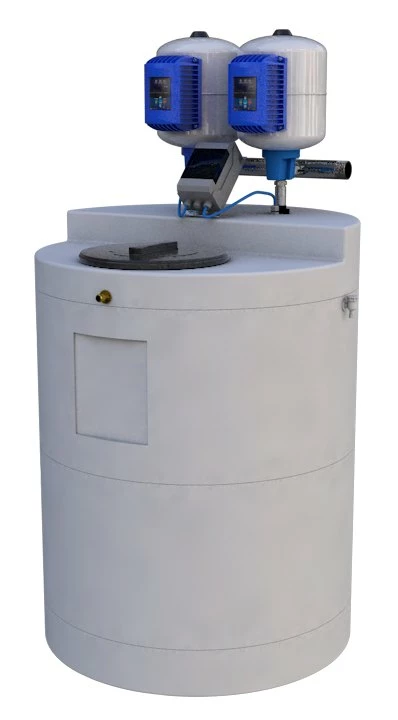

1200 Litre Cold Water Tank with a Twin Pump Booster set

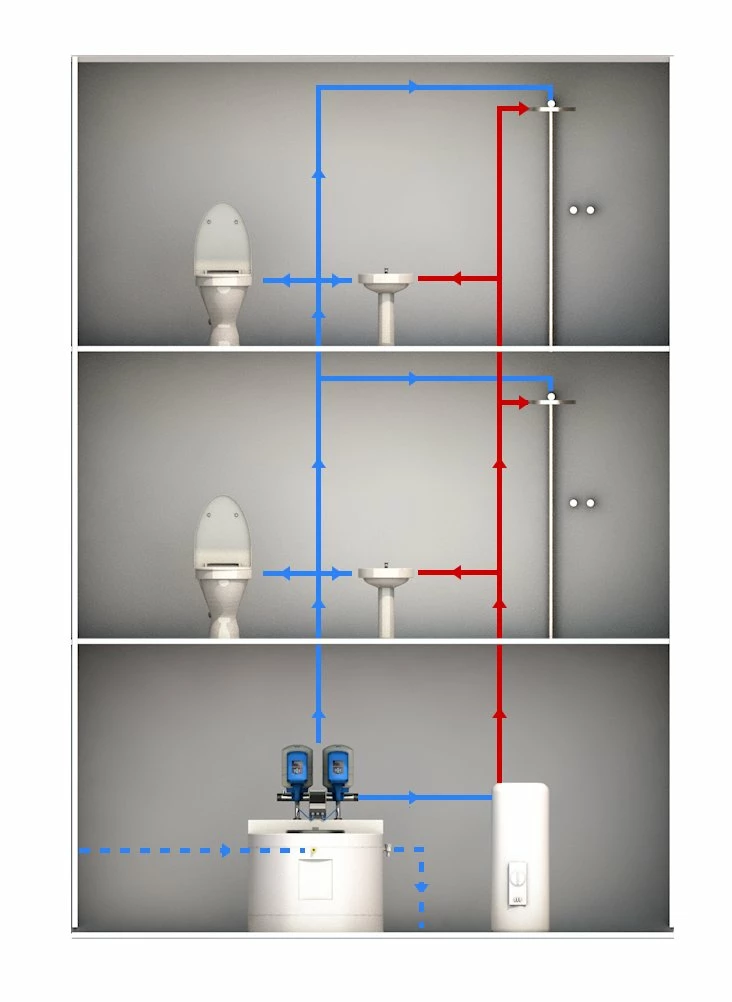

The Aquamaxx has been specifically designed for smaller properties with low water pressure and flow where space is at a premium. Areas such as apartments, cottages and town houses would benefit the most from a compact system.
The Aquamaxx Compact fits into the space of a standard kitchen unit as they are similar in size to a washing machine, so can be hidden away behind a cupboard door. The electronic controller will automatically start and stop the pump when a drop in pressure is sensed, i.e. a tap or outlet is opened and closed.



Features

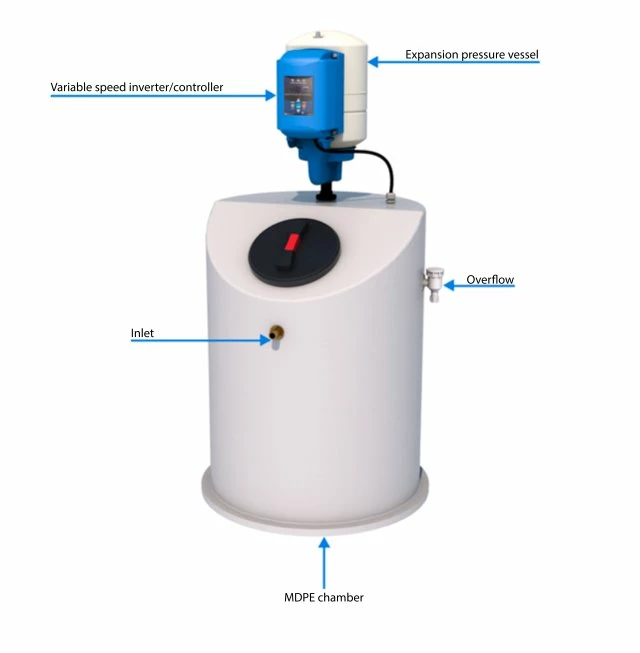

• Non-corrosive holding tank (WRAS approved material)
• Pre-fitted WRAS approved fill valve
• WRAS approved submersible pump (s).
• Integral overflow weir
• Minimal installation requirement
• Digital display flow controller
• Dry run protection with auto restart (time delay)

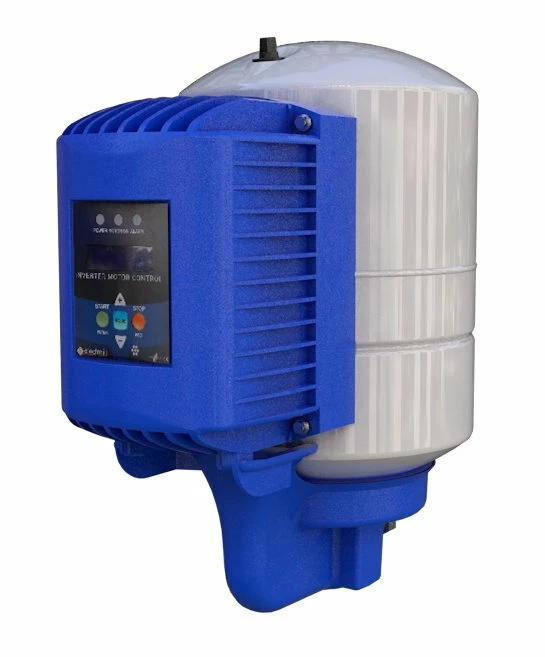

• WRAS Approved inverter and vessel





Tank Capacity	Pump Arrangement	Diameter (mm)	Height (mm)	Inlet	Outlet (Single)	Outlet (Twin)	Overflow
1200 Litres	Twin	1000	1870	1/2” BSP	1” BSP	2 x 1 1/2”	22 mm



Pump

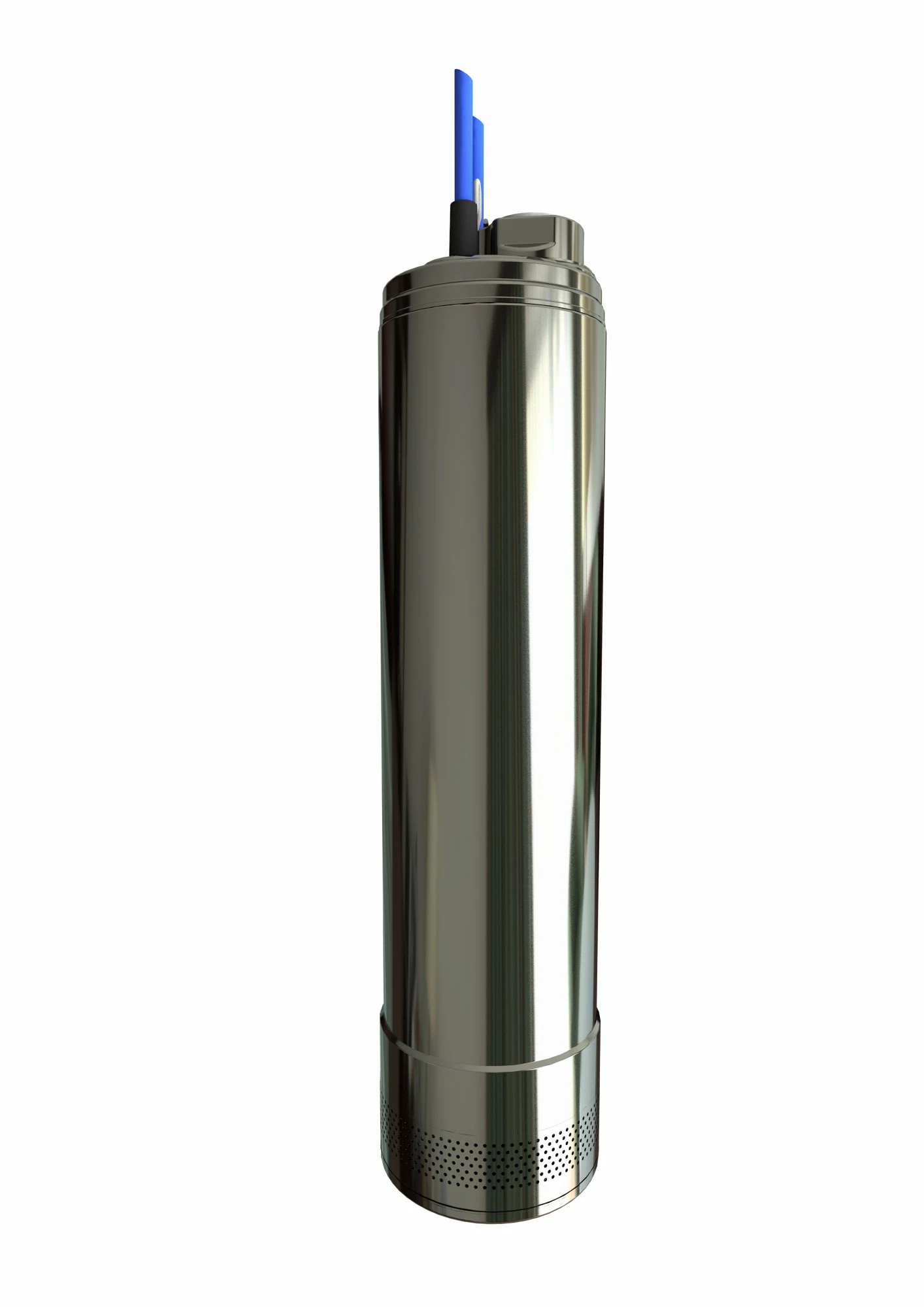

All Aquamaxx booster sets use the IDROGO submersible pump. Comprising a stainless steel outer casing and glass fibre reinforced PPE impellers, this pump is reliable and corrosion-resistant.

Features of the pump

• PPE + PS impeller with glass fibres
• Stainless steel 431 Shaft (EN 1.4057)
• WRAS Approved
• An AISI 304 outer casing
• Carbon/Ceramic/silicon/NBR mechanical seal
• Pre-installed into every Aquamaxx tank

Model Number	Mid-Curve flow	Mid-Curve Pressure	kW Rating	Running Current (amp)	Supply Voltage	Inlet	Outlet	Overflow Size	Dry weight
FV40/10T	80 l/min	4.5 bar	2 x 0.75	2 x 3.8	1 ph 230v 50 hz	28 mm	1 1/4”	40 mm	94kg
FV40/15T	80 l/min	6.5 bar	2 x 1.1	2 x 5.2	1 ph 230v 50 hz	28 mm	1 1/4”	40 mm	96kg
FV80/15T	120 l/min	4.5 bar	2 x 1.1	2 x 5.4	1 ph 230v 50 hz	28 mm	1 1/4”	40 mm	98kg
FV80/20T	120 l/min	5.8 bar	2 x 1.5	2 x 6.1	1 ph 230v 50 hz	28 mm	1 1/4”	40 mm	100kg





Delivery

All our Aquamaxx Booster pumps are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require any specific requirements regarding delivery, please call us before order is placed, where we will try and accommodate this facility for you.

• Product Code: DPT
• Colour: White
• Customer Offloading: Customer Offloading
• Delivery: Free Delivery
• Diameter: 1000mm
• Material: MDPE
• Shape: Upright
• Twin or Single: Twin
• WRAS: WRAS Approved Parts
