7000 Litre GRP Pump Enclosure With Built In Tank, CAT 5 AB Air Gap

GRP Tank Combination Unit 7000 Litre, CAT 5 AB air gap

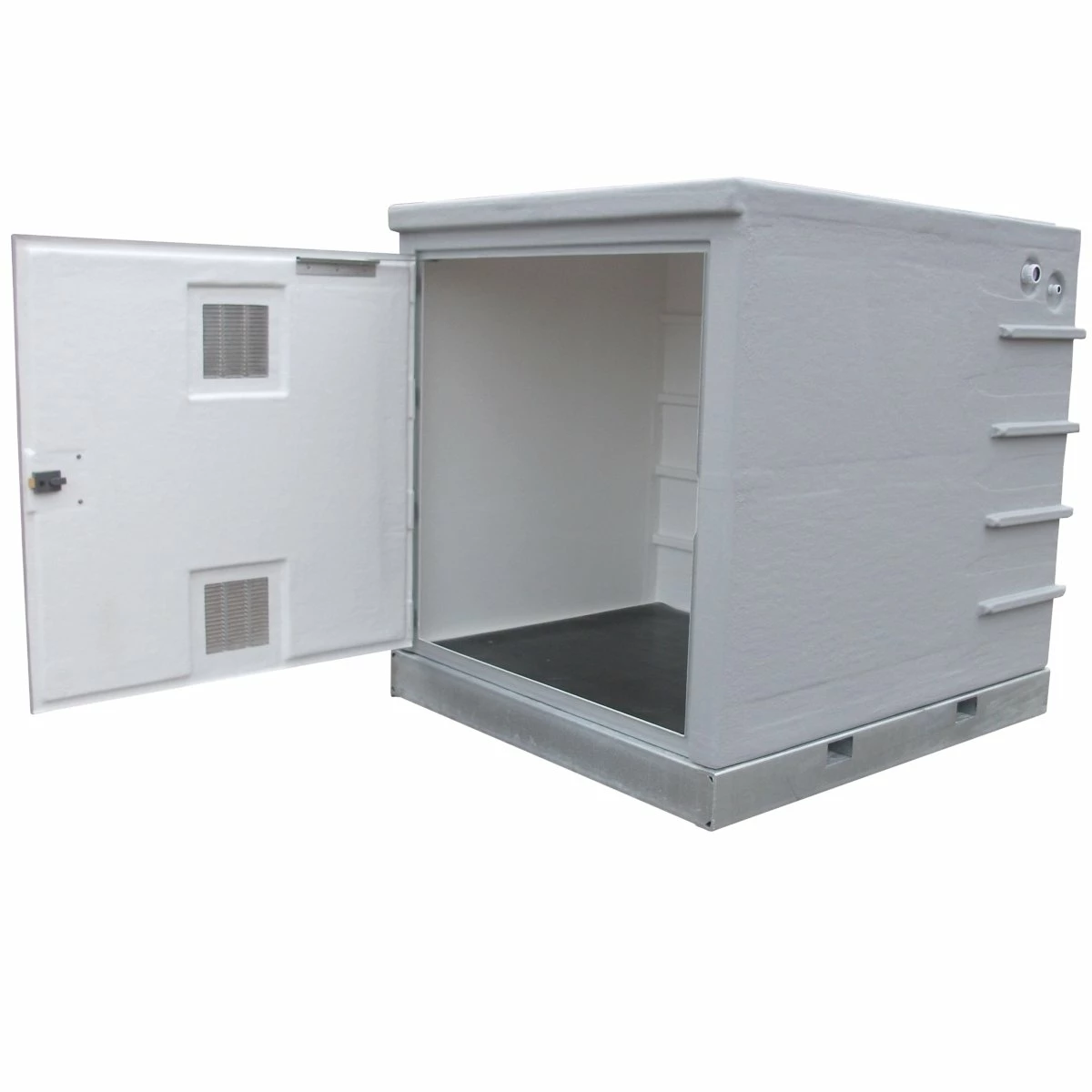

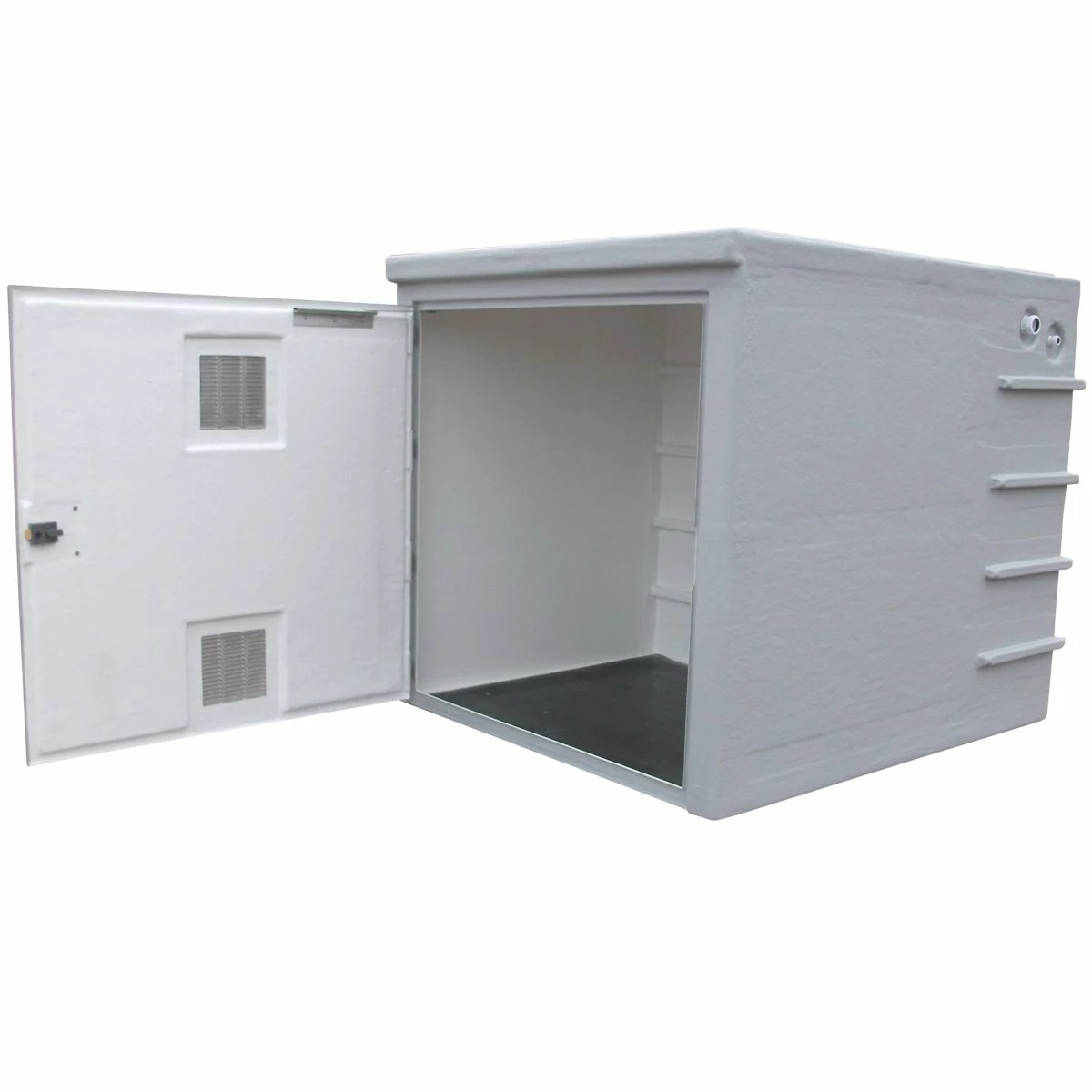

The unit is designed as a single piece item with an internal dividing wall at full height. One internal section being the wet compartment for the stored water which is accessed via a lid mounted lockable manway. Beyond the internal dividing wall is the dry side where the booster set is to be positioned. The internal dividing wall has the inlet and outlet connection within it, the overflow, warning pipe and screened spill over weir terminate through the wet side wall to outside and do not therefore normally require any additional pipework. The dry side is accessed by a large 1600 x 1600mm hinged and lockable door, which is fitted with louvered vents to ensure adequate ventilation.

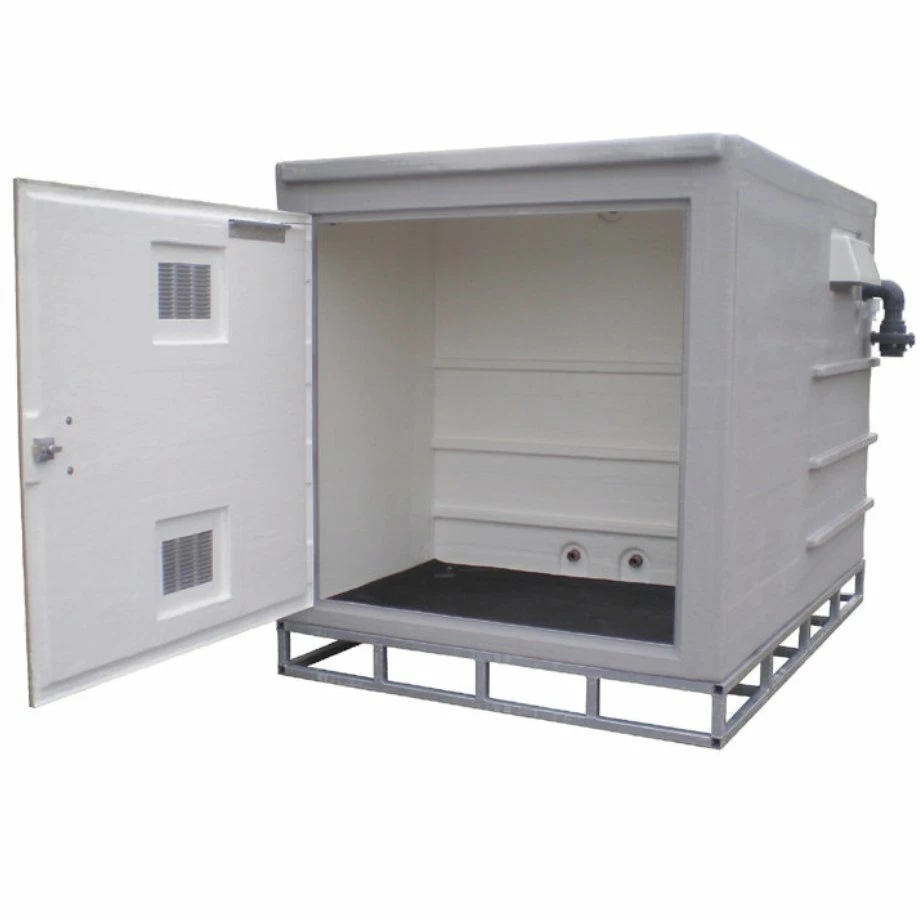

If chosen with the Foundation Skid the whole unit is mounted and fixed too a fully welded galvanised steel skid which allows offloading and movement on site by fork lift struck. The principle is to provide the unit to the booster set manufacturer where the booster and associated electrical equipment can be fitted. The completed unit can then be delivered to site where once positioned it requires the simple connection of the mains pipework, outlet pipework to the services, and electrical supply, making it a “plug and play’ unit requiring minimal onsite installation.

All units are fitted with the following:
1 No 50mm screened lid vent
1 No single 1600 x 1600mm door to the end face of the pump compartment
1 No lockable access manway fitted to the roof of the wet compartment.
1 No EPDM mat to the floor of the pump compartment
A fully encapsulated ply base.
Units do not include electrical components, wiring, pump sets, control equipment, connections of any kind or internal pipework.
Units not fitted with a galvanised steel skid are suitable for positioning onto a structural pad only which should be flat, level and continuous and be +/- 2mm over the surface area.
Units not fitted with a galvanised steel skid have an external height 200mm less than stated in the overall dimensions column of this document

Availability 5-6 weeks

**Cat 5 (AB and AG) supplied loose
AG Airgap
IP22-AG-SL
42mm screened lid vent
22mm equilibrium float valve
35mm screened overflow
22mm screened warning pipe

IP28-AG-SL
42mm screened lid vent
28mm equilibrium float valve
42mm screened overflow
22mm screened warning pipe

IP35-AG-SL
42mm screened lid vent
35mm equilibrium float valve
50mm screened overflow
22mm screened warning pipe

IP42-AG-SL
42mm screened lid vent
42mm equilibrium float valve
67mm screened overflow
22mm screened warning pipe

IP50-AG-SL
50mm screened lid vent
50mm equilibrium float valve
80mm screened overflow
22mm screened warning pipe

AB Airgap
IP22-AB-SL
22mm screened lid vent
22mm equilibrium float valve c/w drop arm and float
35mm screened overflow
22mm screened warning pipe

IP28-AB-SL
22mm screened lid vent
28mm equilibrium float valve c/w drop arm and float
42mm screened overflow
22mm screened warning pipe

IP35-AB-SL
22mm screened lid vent
35mm equilibrium float valve c/w drop arm and float
50mm screened overflow
22mm screened warning pipe

IP42-AB-SL
22mm screened lid vent
42mm equilibrium float valve c/w drop arm and float
67mm screened overflow
22mm screened warning pipe

IP50-AB-SL
22mm screened lid vent
50mm equilibrium float valve c/w drop arm and float
80mm screened overflow
22mm screened warning pipe

CU4.7000AB Data

Nominal Capacity	10,044 Litres
Actual Capacity Approx.	7000 Litres
Overall Dimensions	4500 x 2000 x 2250mm high
Wet Compartment	3100 x 1800 x 1800mm
Pump Compartment	1200 x 1800 x 1800mm



• Product Code: PW
• Customer Offloading: Customer Offloading
• Material: GRP
• Potable: Potable
• Stock tank: Made to Order, Non Returnable Product
• WRAS: Yes
• WRAS Approved: Yes
