450 Litre POLY Above Ground Water Pumping Station

450 Litres POLY Above ground Single Water Pump station

A small, compact Grey water pumping station, suitable for residential, commercial, industrial and office/professional spaces.

Easy to install and designed to collect and pump water from an above ground system.

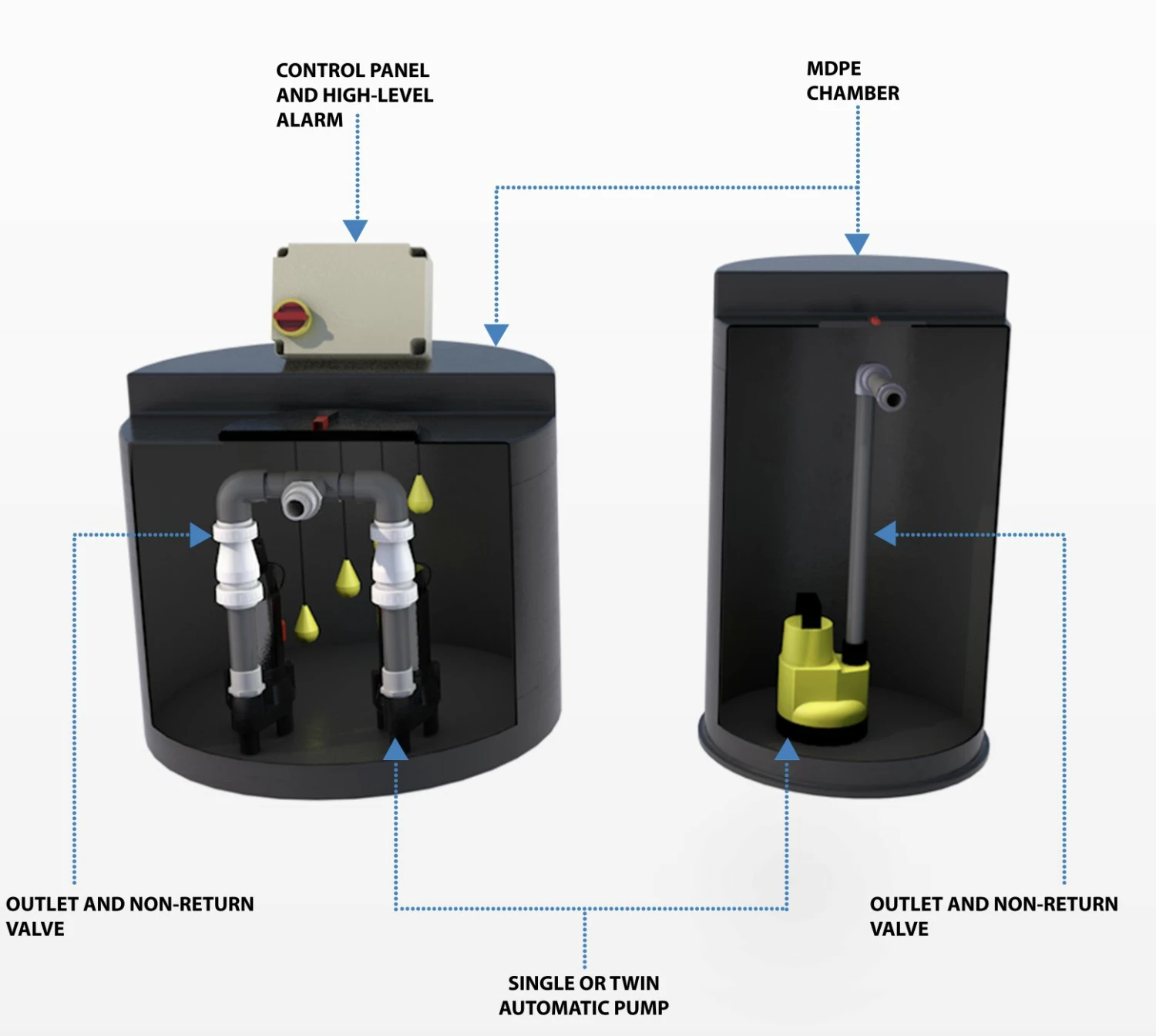

Grey Water Pumping Station includes:

• MDPE chamber
• Soft close Non-Return Valve
• Internal 2″ PVC (class C) discharge pipe work kit
• Seal for incoming and outgoing pipework (4″ & 2″)
• 12 months warranty



Model	PAG450S/AQ
Capacity	450 Litres
Height	1600 mm
Diameter	680 mm
Number of Pumps	Single or Twin
Power Supply	230 – 1ph – 50hz
Rated Power	0.43kw
Rated Current	1.9A
Max Head.	6 m
Max Flow rate per Pump	2.75 l/s
Cable length	10 m
Max Particle Size	10 mm



As the system is being installed above ground, you will need to check the levels to ensure you can achieve a gravity fall into the chamber.



Delivery

All our Above ground units are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require any specific requirements regarding delivery, please call us before order is placed, where we will try and accommodate this facility for you.







• Product Code: DPT
• Customer Offloading: Customer Offloading
• Delivery: Free Delivery
• Material: MDPE
• Tank Use: Above Ground
• Twin or Single: Single
