251 Litre Single Pump CAT5 Booster Set

251 Litre Single Pump CAT5 Booster Set

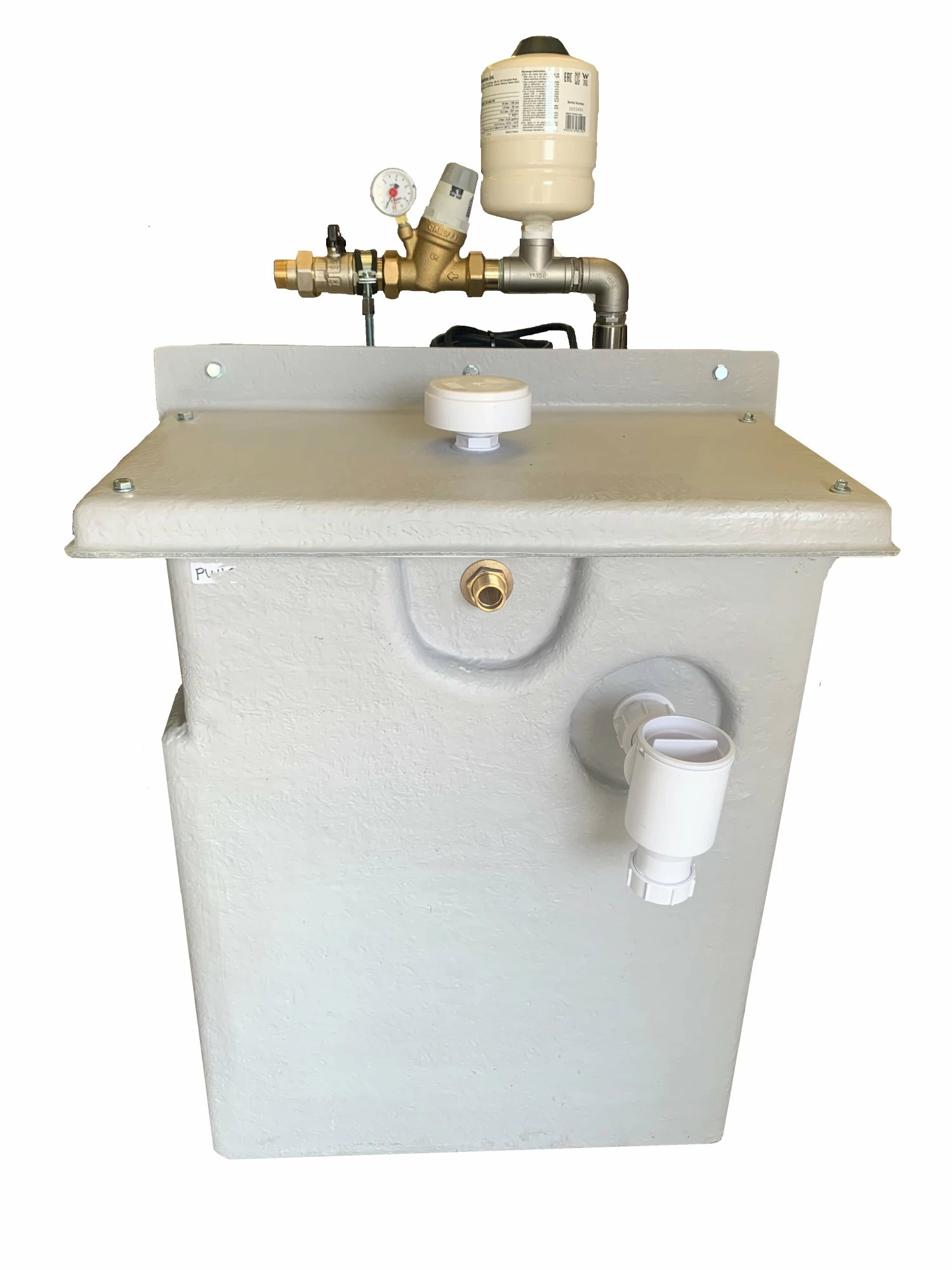

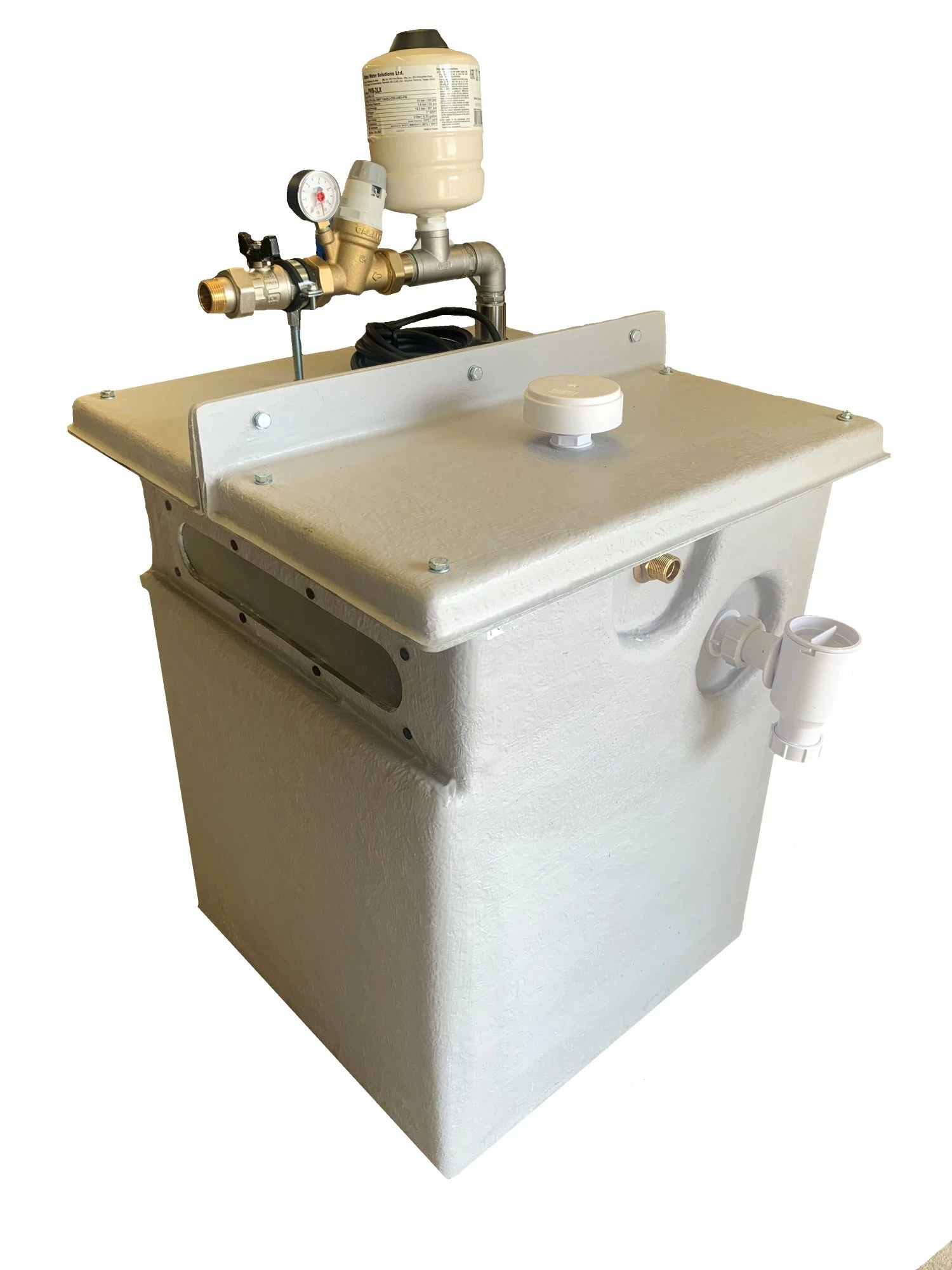

The CAT 5 booster set also know as Backflow prevention booster set incorporates a 251 Litre GRP WRAS approved break tank complete with a raised ball valve chamber with an AB air gap to WRAS approved regulations.


Applications include:

• Laboratories
• Veterinary Surgeries
• Bin Washdown
• Mortuaries
• Abattoirs
• Bib Tap

Operation

The CAT 5 Booster set is designed to monitor the system pressure. As the demand increases the pressure will fall and the pump will start to run until the demand has stopped and the pressure increases.


Pump Specification

Multistage pump complete built in pressure switch, 230 volt single phase supply.



Technical Specifications



• Single Pump Packaged Booster Set and CAT5 Break Tank.
• Fixed Speed Pressure Pump – Variable speed optional upon request.
• Pre-assembled for easy installation.
• Wet/Pressure tested prior to despatch.
• Quiet operation, less than 50 decibels.
• Compact design, narrow width ideal for access through doorways.
• WRAS Approved water storage tank manufactured from GRP with 25mm insulation.
• WRAS Approved 3
• 4″ High flow ball valve fitted.
• 1 Phase 230 Volt supply.
• Low Water Level Protection.
• WRAS Approved fully adjustable system pressure reducing valve fitted.
• Maximum allowable static head 12 metres.

Tanks Direct also supply variable domestic & commercial twin and triple pumps, please contact us on 01643 703358.



Delivery

All our Booster sets are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require any specific requirements regarding delivery, please call us before order is placed, where we will try and accommodate this facility for you.



Image is for display purposes only, tank could differ in size, please check the data sheet re dimensions.

• Product Code: DPT
• Material: HDPE (High density polyethylene)
• Shape: Upright
