24 Litre Wheel Arch Tank

24 Litre Wheel Arch Tank

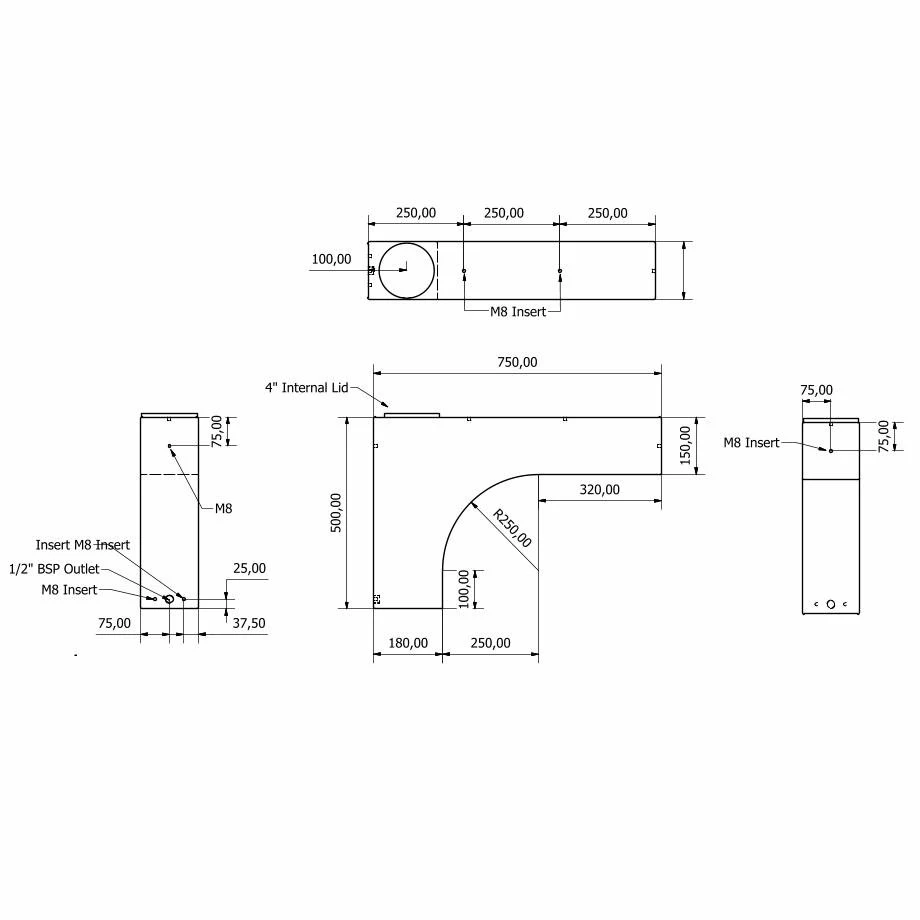

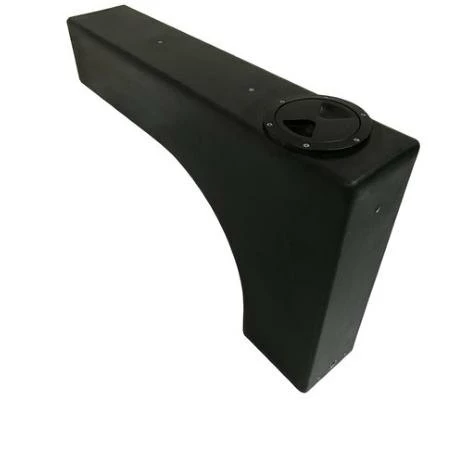

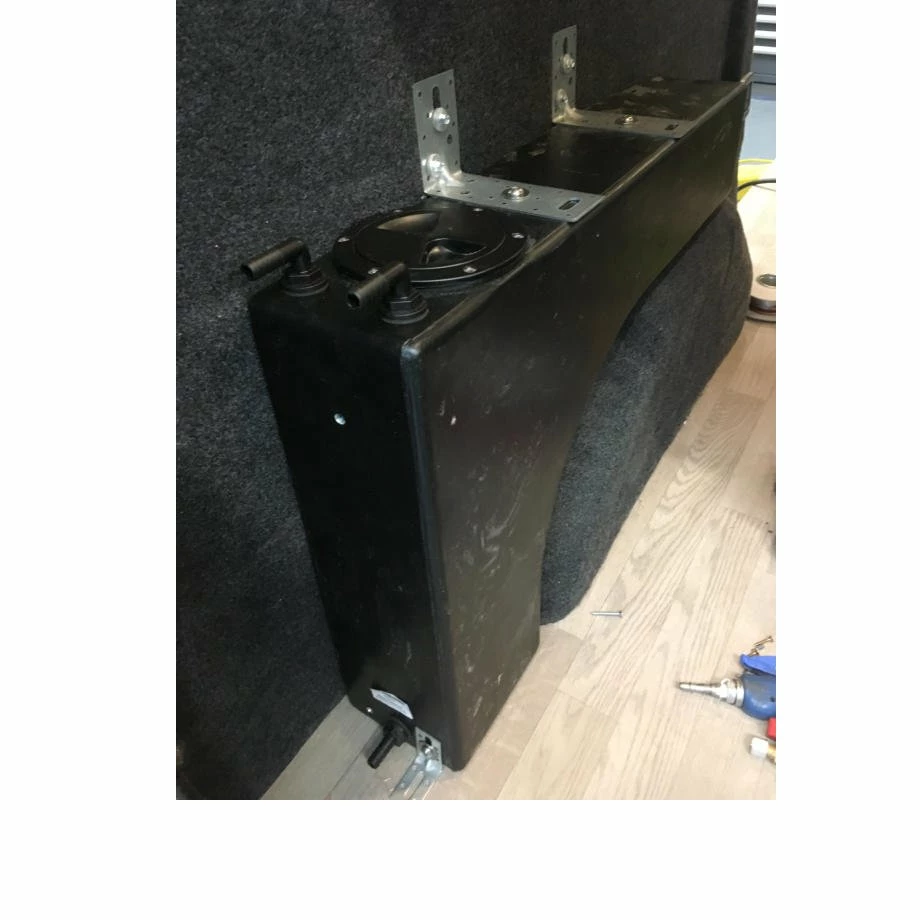

The 24 Litre wheel arch tank is designed to fit in vans and pickups. With its 6 x M8 inserts moulded into the tank is it easy to mount onto the van or Pickup.

There is also a range of kits available to ensure the tank is quick and easy to install including a plumbing kit, fitting kit and a submersible pump kit options. The kits if selected, will comprise of the following –

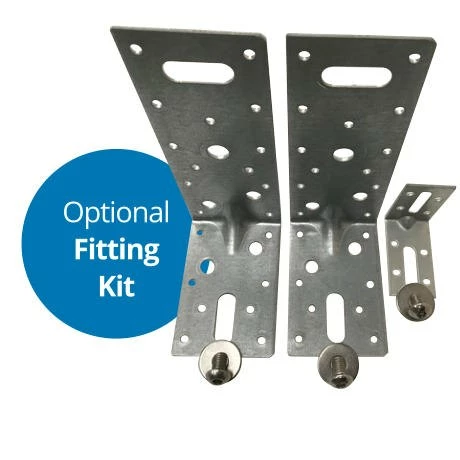

Fitting Kit

• 3 x M8 x 12mm socket button head stainless steel
• 3 x M8 x 25mm washer stainless steel
• 1 x 50mm x 55mm x 30mm angle bracket
• 2 x 150mm x 90mm x 60mm angle bracket.

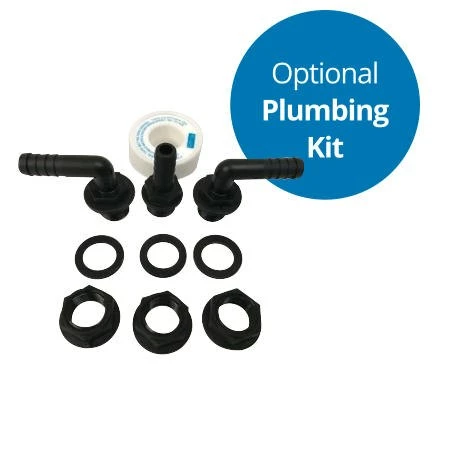

Plumbing Kit

This kit has all the fittings required for the outlet, inlet and vent hoses
– 1 x 1/2″ BSP x 13mm hose tail
– 2 x 1/2″ BSP 90 degree hose tail
– 3 x 1/2″ BSP gasket
– 3 x 1/2″ BSP back nut
– 1 x 10 Metre roll PTFE tape

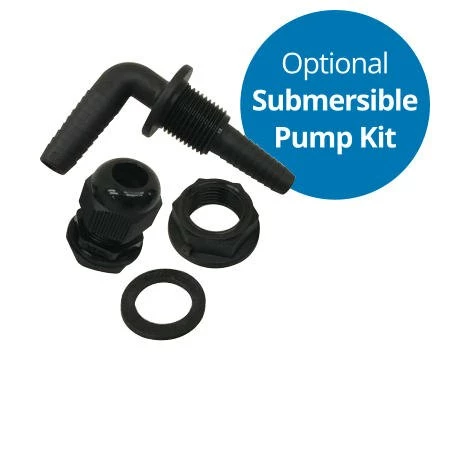

Submersible Pump Kit

This kit can be used to allow a submersible pump to be connected through the lid
– 1 x 1/2″ BSP 90 degree bulkhead hose tail 11-13mm
– 1 x 1/2″ BSP back nut
– 1 x 1/2″ BSP Gasket
– 1 x Cable gland
– 1 x 10 metre roll of PTFE tape

**IMPORTANT** Due to the manufacturing process, we cannot guarantee products are free from debris, notably but not limited to dust or swarf, please check and rinse out if required.

• Product Code: WD
• Colour: Black
• Lid Size: 50
• Material: MDPE
• Outlet Size: 1/2″ BSP Female
• Potable: Potable
• Shape: Rectangle
• Tank Use: Above Ground
