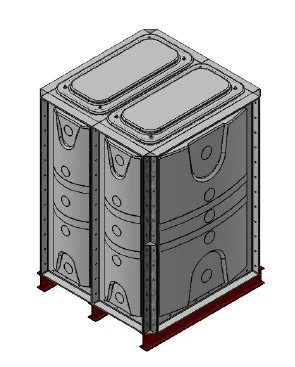

1500 Litre GRP Sectional Water Tank, 1x1x1.5(0.5+0.5) Internally Flanged Base (IFB) Divided

1500 Litre GRP Sectional Water Tank, Internally Flanged Base (IFB) Divided

1500 Litre GRP Sectional Water Tank, a sectional tank with an internally flanged base and externally flanged sides. Modular construction utilising bolt together panels suitable for on-site assembly.

What’s the Divided Section for in a sectional tank?

Tanks with an internal division, which is also known as a maintenance division, are suitable for buildings that we require an uninterrupted water supply during periods of maintenance to the tank. The internal divider creates two isolated compartments within a single tank, which enables one side of the tank to be taken out of service for maintenance, whilst water supply is maintained to the building via the second compartment of the tank.

Please note: divided tanks are essentially two separate tanks & therefore require double the quantity of connections, i.e. 2 x inlet connections & 2 x outlet connections to the down services.

Insulated and WRAS approved for use with potable water. Suitable for a variety of applications including process cooling, rainwater harvesting and many other systems and processes where containment of water is necessary. All gaskets, seals and fixings for assembly are included. Available for self-assembly, or on site assembly is available by qualified engineers for an additional cost.

IFB tanks are suitable for positioning onto a flat, level and continuous foundation, normally a structural concrete slab.

IFB tanks require a minimum of 500 mm working clearance all around the tank, a minimum of 500 mm above the man-way height and/or 350 mm above any raised float valve housing.

Optional Extras:

Screened lid vent
Screened overflow ¾’ (22 mm) up to 4″
Screened warning pipe ¾’ (22 mm)
BSP female tank connector 1″ up to 4″
Lid mounted level switch to suit high or low warning Temperature sensor

Important: All water storage tanks supplying water to a potable system require pre-commission cleaning and sterilisation, we can also carry out this work and issue the appropriate certificates.

An Internally Flanged Base Tank (IFB) is the most cost-effective sectional tank format and is suitable for: Positioning onto a flat, solid, level and continuous foundation.

Applications where there is sufficient working room all around the tank.

Comprising: Internally flanged base, externally flanged sides, internally flanged roof.

Insulated to the sides and cover only.



Specification

• Insulation: 50 mm Fully Encapsulated to Sides
• Panel Size: 1000 x 1000 mm
• Side Panels: Externally Flanged
• Base Panels: Internally Flanged
• Heavy Duty Lid: Internally Flanged
• Internal fixings: Stainless Steel
• External fixings: Galvanised
• Man way: Included, providing 800 x 800 mm access opening
• 0.5x1x1.5 high compartments (divided sections)
• Foundation Levelling Steels:  Included (To suit flat structural foundation pad)



PW.1x1x1.5.IFB-AG.DIV (0.5+0.5) Dimensions

Airgap	AG
Single or twin compartment (Divided)	Twin – 2 No. 500 x 1000 x 1500 mm
External Dimensions	1150 x 1150 x 1750 mm high
Assembly area required	2150 x 2150 x 2250 mm high





Does your water tank need a clean?

Water can pose a number of risks if not maintained correctly, with this in mind we can offer the below service for your GRP tanks.



Annual Disinfection Information and Options

• Designed for easy installation, saving time and money
• We can offer monthly, yearly and fixed priced packages ranging from 1-3 years
• All work is carried out by CSCS qualified engineers
• Tank upgrade works available, bringing the old tanks up to current regulations
• Full tank replacement works available
• Legionella risk assessments including schematic drawings if required
• Microbiology analysis – water sampling via UKAS approved laboratories
• Building flush and mains injection
• Commissioning of booster sets
• Servicing of water softeners and booster sets
• Replacement of hollow roof struts.
• Insulating of existing cold water storage tanks

• Product Code: PW
• Customer Offloading: Customer Offloading
• Material: GRP
• Potable: WRAS Approved
• Stock tank: Made to Order, Non Returnable Product
