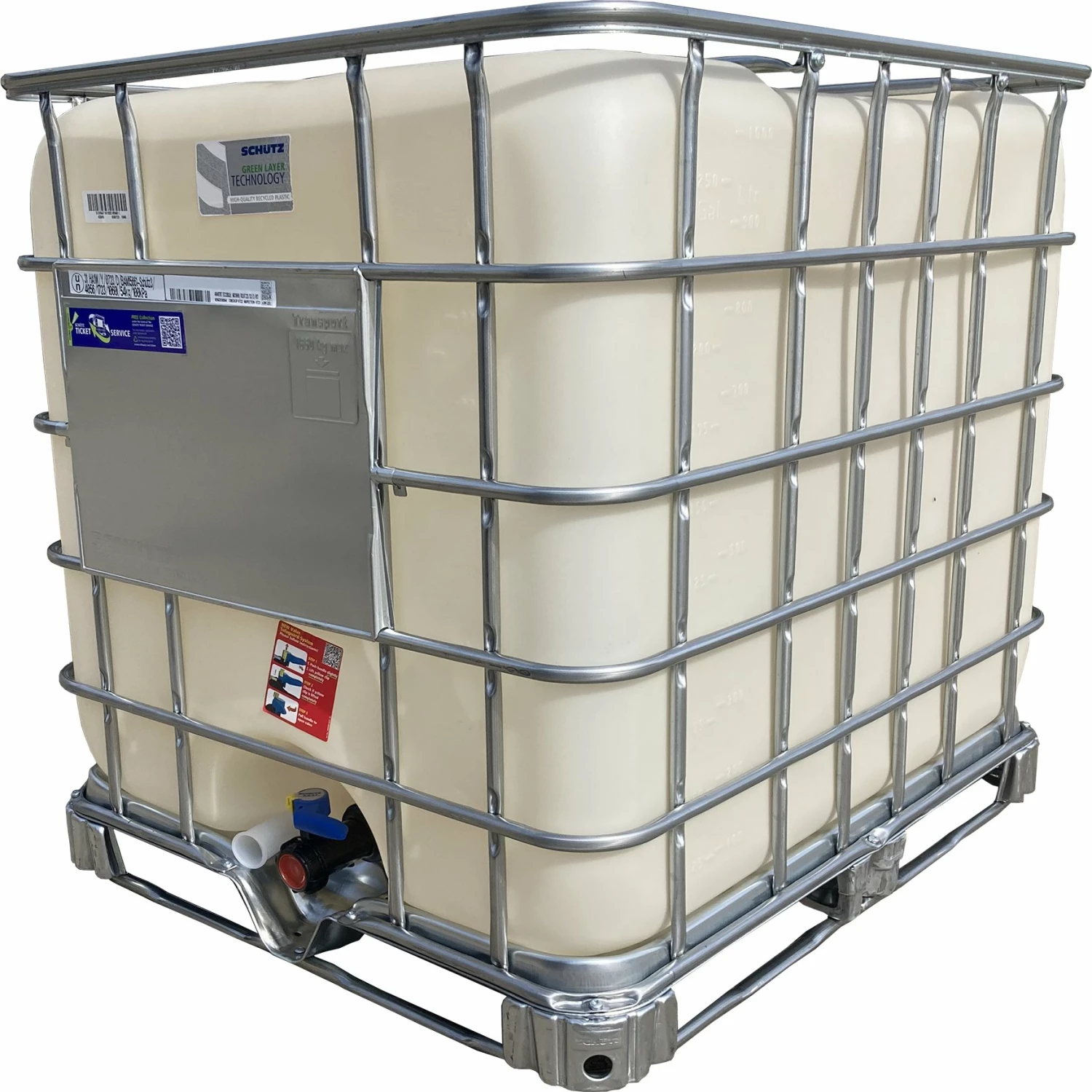

1000 Litre IBC Green Layer / Recycled Middle Layer

1000 Litre IBC Green Layer / Recycled middle layer

1000 Litre IBC (Intermediate Bulk Container) with a recycled (green) middle layer. For a number of years now, the industry has been recycling old bottles, plastic pallets and drums by grinding them down and turning them into new plastic pallets to be used on their IBCs. The pallets have never come into contact with the user’s product directly for obvious reasons, but that left us with a difficult task, especially when faced with the up and coming “Plastic Tax” set to hit the industry soon. We now have our Green Layer IBCs consist of three layers; the outer and inner layers – the ones that come into contact with the user and the product are both brand-new polymer, much like every other brand new IBCs that we also produce. The middle layer, however, is made of recycled polymer, as this never comes into contact with anything other than the two layers it is sandwiched between.

These Green Layer IBCs are available with UN 31 HA1/Y Certification and whilst at the moment they are only available in a black bottle configuration they do come with sight strips and Schütz are also looking at a natural bottle option too

Frame:-

• Galvanised mild steel
• Large ‘Ticket’ identification plate above valve outlet, Large documentation plate on back (opposite side to valve) 4 way entry galvanised mild steel perimeter pallet
• Dimensions 1200 x 1000 x 1160mm

Inner Container:-

• 1000 Litre light duty blow moulded High Density Polyethylene bottle on inner and outer layer
• 30% recycled middle layer
• Litre/Gallon markers to indicate the amount of liquid within the tank

Fittings:-

• 50mm integral butterfly valve, inner seal PTFE, with S60 x 6 male thread and screw cap
• 150mm top centre screw cap with TPE seal, pressure vent and rain cap

Please note all fittings are sent out separately and not with the tank

UN Certified for packaging groups II & III to a maximum SG of 1.6

Water tanks can be extremely hazardous when transporting large volumes of liquids. Please make sure that they are installed and secured by a suitable qualified person before transportation.

IMPORTANT SAFETY MESSAGE – These tanks are suitable for most Non-Hazardous materials.

**Please note you will also need the S60x2″Fem BSP+Seal if you want to bush down to 1″



Delivery

All our IBC tanks are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

Delivery is made either by a Luton lorry or Artic Lorry. Please inform us at the point of order, if access is restrictive for delivery.

If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.



• Product Code: PE
• Colour: Black
• Customer Offloading: Customer Offloading
• Lid Size: 150
• Material: HDPE (High density polyethylene), Recyclable
• Outlet Size: S60 x 6 male thread
• Potable: Potable
• Shape: Square
